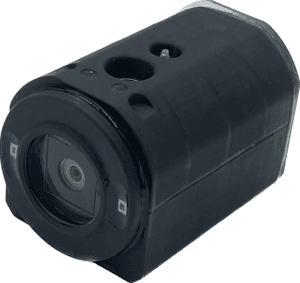

LoggLaw CAM
Video logger with built-in hydrophone. Crystal-clear FHD/HD/VGA footage for recording underwater animal behavior. Water-resistant design rated to 500m depth for various marine environments.
Key Features
Full HD Video
Crystal-clear video recording at FHD (30fps), HD (60fps), and VGA (120fps). Captures the finest movements of underwater creatures.
Built-in Hydrophone
Simultaneous underwater audio recording. Operates on the same clock as video data for precise synchronization.
Low-Light / Night Capable
CAM basic is equipped with high-intensity red LED to minimize impact on marine life. Automatic illumination control based on ambient brightness (CAM mini has no LED).
Schedule Settings
Start and end times can be set via dedicated software. Supports duty cycle mode (repeating on/off intervals).
Water Pressure Resistant
Robust design that withstands 50 bar (equivalent to 500m depth). Suitable for various marine environments.
Extended Recording
Rechargeable battery included. CAM mini records up to 4 hours, CAM basic up to 6 hours continuously. External battery option available.
Sample Videos
Watch sample footage captured with LoggLaw CAM
Introducing LoggLaw CAM: The Pioneering Biologging Camera for Underwater Wildlife Exploration!
Green sea turtle encounters with another Individual
Fish pulse-structured sound recorded with LoggLaw CAM
Specifications
Detailed Technical Specifications
Basic Specifications
| CAM mini | CAM basic | |
|---|---|---|
| Dimensions[*1] | 30 × 32 × 58 mm w/ waterproof cap: 38 × 38 × 71 mm | 38 × 38 × 58 mm w/ waterproof cap: 38 × 38 × 71 mm |
| Weight in Air | 98g | 129g |
| Memory | SD Card (up to 1TB) | |
| Resolution | VGA (640×480) / HD (1280×720) / Full HD (1920×1080) | |
| Frame Rate | VGA: 30/60/120fps HD: 30/60fps Full HD: 30fps | |
| Field of View | 89° (underwater) / 129° (in air) | |
| Red LED | No LED | High-intensity red LED |
| Water/Pressure Rating | Max depth 500m | |
| Operating Temperature | -10°C ~ 40°C | |
| Sensor Options | Hydrophone / Depth (Pressure) / Temperature / 3-axis Accel / 3-axis Geomag | |
| Interval Settings | Hydrophone: 96kHz Temp/Depth/Geomag: 0.5/1Hz Accel: 4/8/16/32/64Hz | |
| Battery Life (Continuous)[*2] | Up to 4 hours | Up to 6 hours |
| Rechargeable | ||
| Battery Extension | Optional | |
| Time Accuracy | ±108 s/yr | |
*1: Top row shows body-only dimensions, excluding waterproof cap
*2: Estimated for continuous recording at VGA 30fps. Actual duration varies by usage conditions.
* Specifications are subject to change without notice for improvement purposes.
